WZF2-EX
with long actuation travel, EX-version
The safety switch WZF2-EX with separate actuator is intended for the use in explosion endangered areas. It is used to control the close position of lift doors and protective enclosures and as switch for locking mechanism at automatic doors. The actuator is mounted at the door leaf resp. at the locking mechanism. When pulling the actuator out of the switch a forced opening of the contact is made.

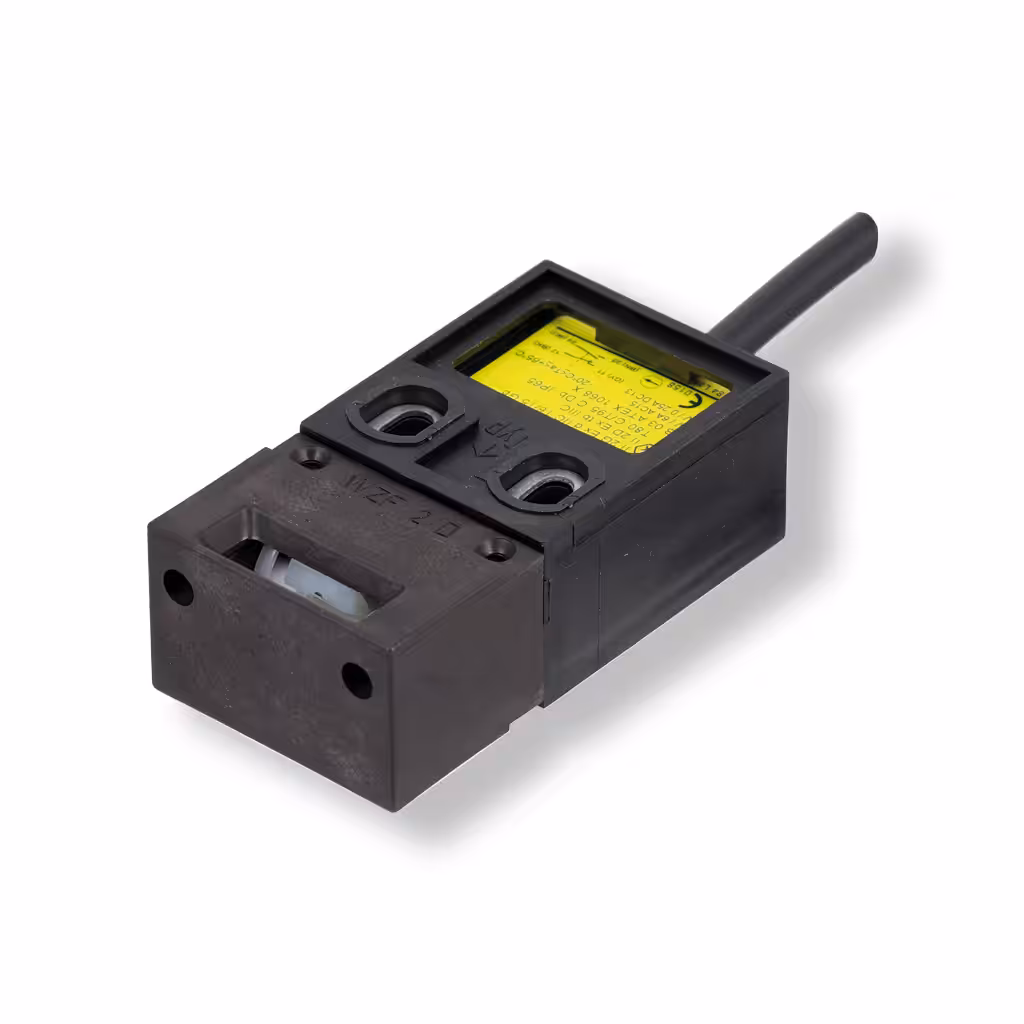

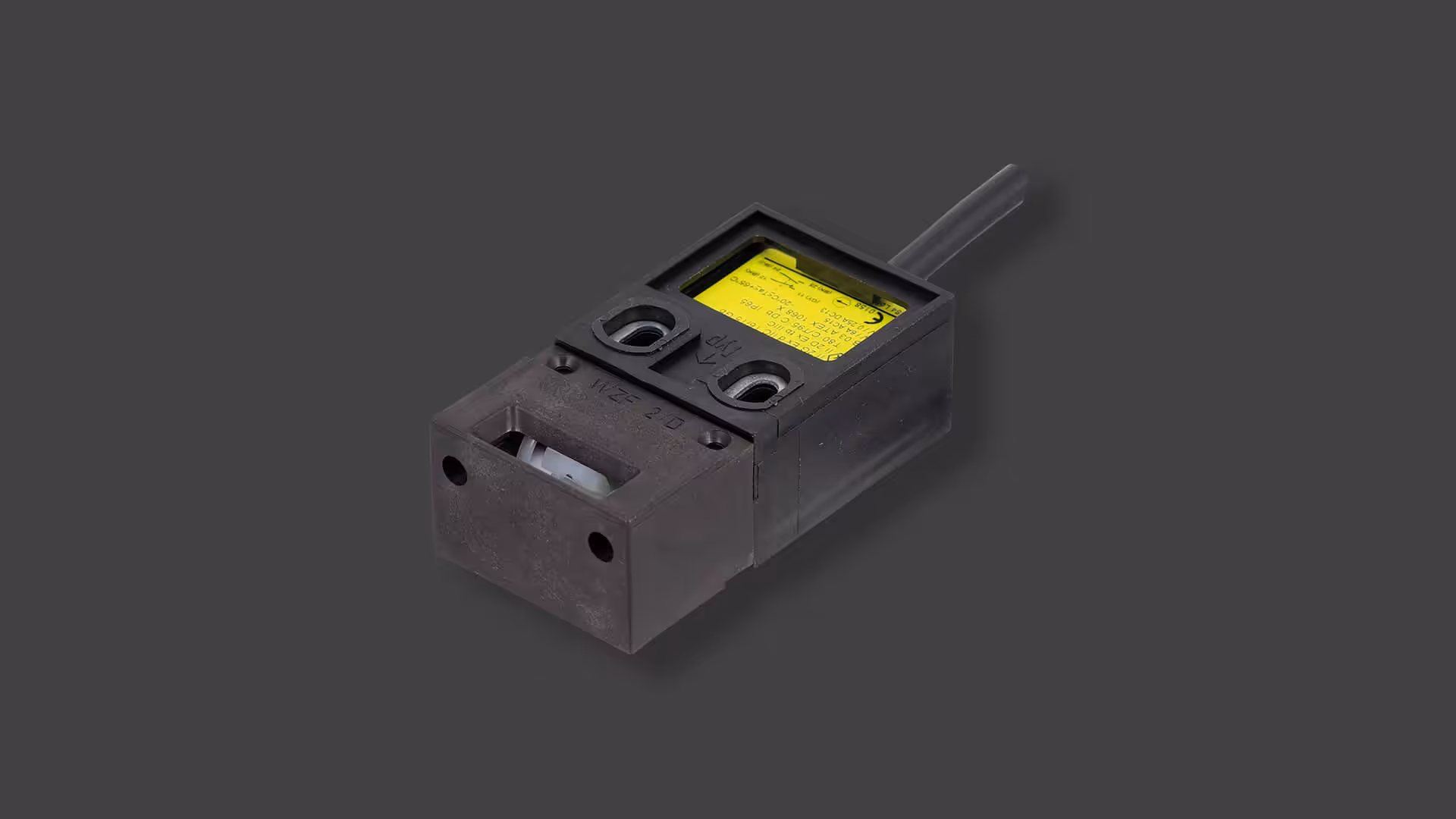

Safety switch WZF2-EX
Actuator BB-MS for switch WZF2-EX

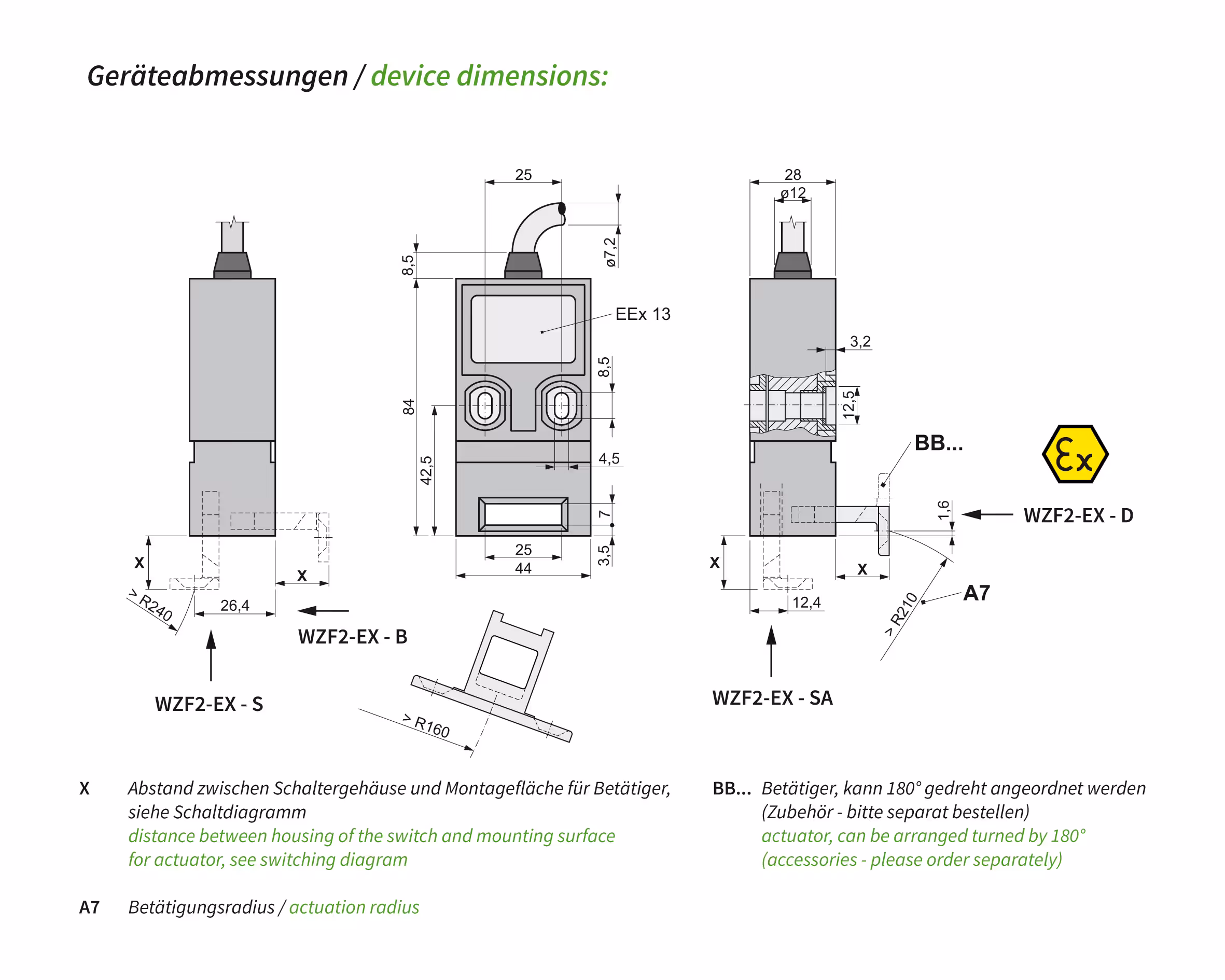

Dimensions WZF2-EX
Features
- special version for use in explosion-endangered areas
- enclosure made of shock-resistant plastics, self-extinguishing
- two contacts, positively driven normally closed and normally open contact
- large tolerance between contact surface to the stop of the actuator
- mounting brackets made of metal for secure fixation
Order information codes
Technical data
| norms | IEC/EN 60947-5-1, EN 60079-0, EN 60079-1, EN 60079-31, EN ISO 13489-1, EN ISO 14119, GS-ET 15 |
| switching capacity | Ui = 250 V Ith = 10 A Uimp = 4 kV AC-15: Ue = 250 V Ie = 6 A DC-13: Ue = 200 V Ie = 0.25 A AC-15: Ue = 24 V Ie = 10 A |
| short-circuit capacity | T10 A F 16 A |
| contact material | silver-nickel (min. load 24 V / 10 mA) |
| actuation- / back pressure force | 21 N / 1000 N |
| connection | 2 m connection cable H05VV-F, 4 x 0.75 mm² (10 m as option) |
| level of protection | IP65 according to IEC/EN 60529 |
| ambient air temperature | -20 °C up to +60 °C |
| installation position | any |
| B10d – value (10 % nominal load) | 2 million / service life max. 20 years |
| weight | WZF2-EX = 480 g BB-KIPP = 23 g BB-MS = 26 g BBV-MS = 34 g |
