MSK
Slot magnet switch with connection cable
The slot magnet switch MSK equipped with a reed contact is switched by a sheet steel that enters into the slot. An additional permanent magnet is not necessary. The contact surrounded by inert gas reliably detects the position of moving parts. The switching condition can be indicated with LEDs. A bistable version is not intended.
Magnet switch MSK
Magnet MR10 / MR10R
Dimensions MSK

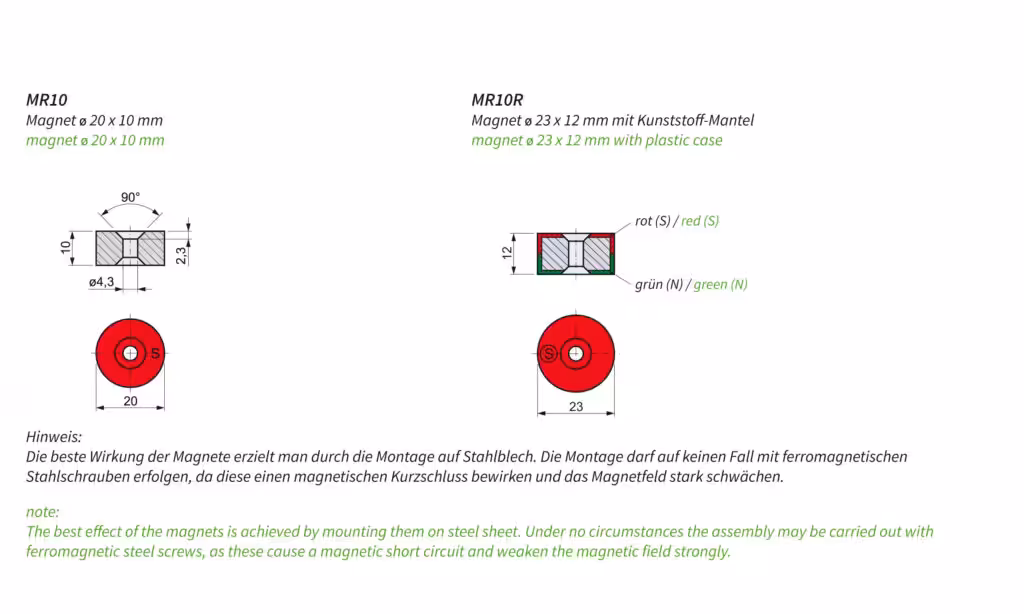

Dimensions MR10R
Features
- slot magnet switch with integrated magnet
- 2 m connection cable
- actuation is made by ferromagnetic steel sheet
- high contact safety because of reed contact in inert gas atmosphere
- quiet operation
Order information codes
Technical data
| contact material | iron / nickel with rhodium |
| connection | 2 m connection cable, 2 x 0.5 mm² resp. 3 x 0.34 mm² |
| level of protection | IP67 |
| ambient air temperature | -25 °C up to +80 °C |
| weight | 120 g |
| MSK: switching performance max. switching voltage max. (AC/DC) switching current max. switch-on time drop-out time switching performance max. |
-S-LED 40 VA / W 230 V 0.8 A 2 ms 0.1 ms 100 Hz |
