WZ
in especially robust design
The water-protected safety switch WZ with separate actuator is a safety switch with forced actuation and is used to control the close position of lift doors. It is very robust and therefore particularly suitable for lift doors. The actuator is mounted at the door leaf. When pulling the actuator out of the switch a forced opening of the contact is made.

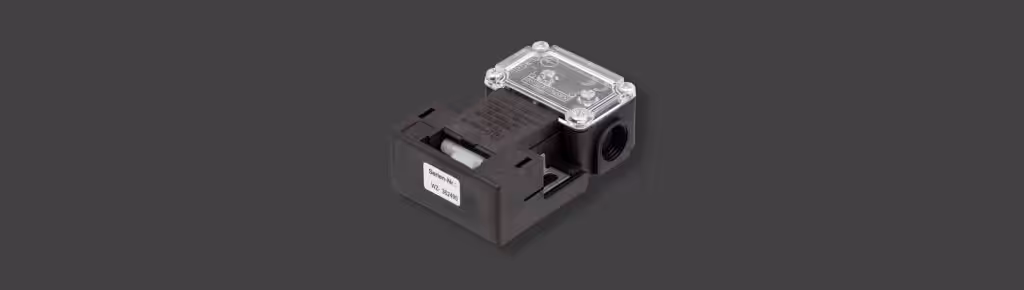

Door switch WZ

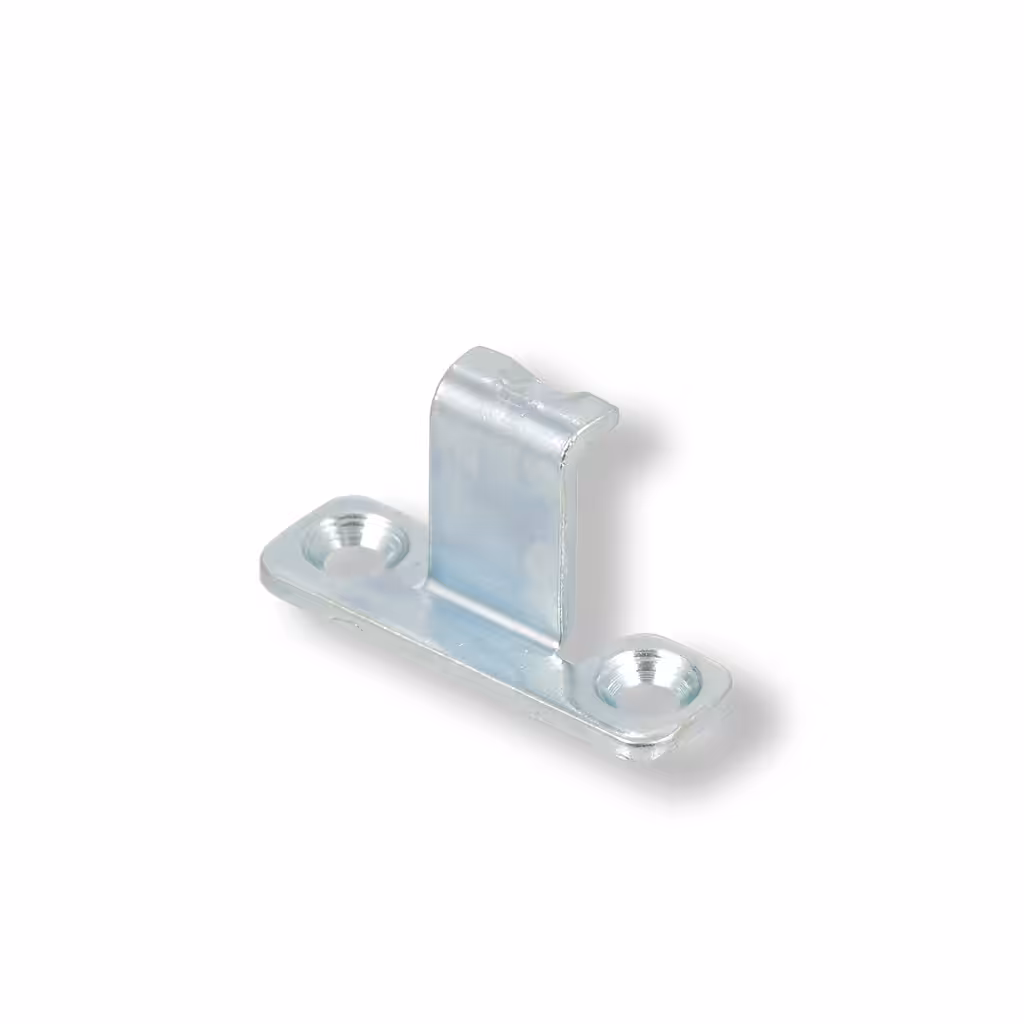

Operating claw BK for door switch WZ
Dimensions WZ
Features
- water-protected safety switch with positive contact
- use for monitoring the closure position of lift doors
- long travel from initial contact to stop
- enclosure made of thermoplastic, self-extinguishing
- especially robust construction
- movement of contacts visible through transparent cover
- actuator is ejected, if plugged in up to 3 mm before the stop only
- permanent fixation due to metal inserts with oblong hole
Order information codes
Technical data
| norms | EN 81-20, EN 81-50, IEC/EN 60947-5-1 |
| switching capacity | Ui = 250 V Ith = 10 A Uimp = 4 kV AC-11: Ue = 230 V Ie = 6 A DC-13: Ue = 200 V Ie = 1 A AC-15: Ue = 24 V Ie = 10 A |
| short-circuit capacity | T10 A F 16 A |
| contact material | fine silver |
| actuation- / back pressure force | 13 N / 0 N |
| connection | by screw terminal max. 2.5 mm², two cable entries M16x1.5 |
| level of protection | IP66 |
| ambient air temperature | -30 °C up to +80 °C |
| installation position | any |
| B10d – value (10 % nominal load) | 10 million / service life max. 25 years |
| weight | WZ = 100 g BK = 27 g |
