MKR13X
Magnet switch, round design, EX-version
The magnet switch MKR13X equipped with a reed contact is suited for the application in explosion-endangered areas. It is switched by the approach of a permanent magnet and serves for the detection of certain positions of moving parts.
Magnet switch MKR13X
Magnet MR10 / MR10R
Dimensions MKR13X

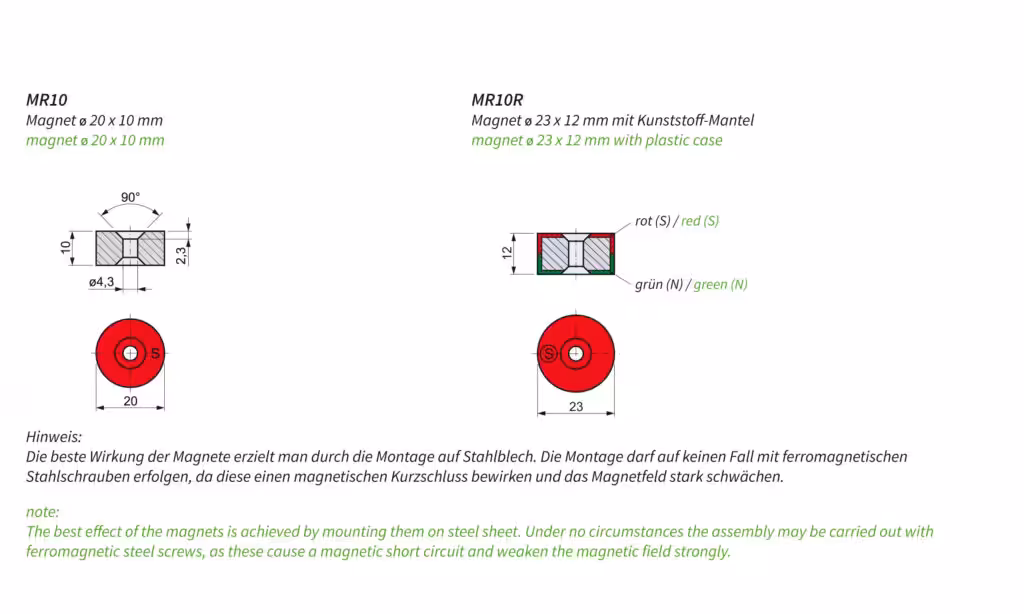

Dimensions MR10R
Features
- round magnet switch for explosion-endangered area
- 3 m connection cable
- enclosure made of shock-resistant plastics, self-extinguishing
- quiet functioning
- bistable version available (stay-put)
Order information codes
Technical data
| norms | IEC/EN 60079-0, EN 60079-18 |
|||
| contact material | iron / nickel with rhodium | |||
| connection | 3 m connection cable 2 x 0.75 mm² resp. 3 x 0.75 mm² |
|||
| level of protection | IP67 | |||
| ambient air temperature | -40 °C up to +70 °C | |||
| installation position | any | |||
| weight | 115 g | |||
| MKR13X: switching performance max. switching voltage max. (AC/DC) switching current max. switch-on time drop-out time switching performance max. |
-RAK 120 VA / W 250 V 1 A 2 ms 0.2 ms 100 Hz |
– SAK 120 VA / W 250 V 1 A 2 ms 0.1 ms 100 Hz |
-OAK 60 VA / W 250 V 1 A 4.5 ms 7 ms 100 Hz |
-UAK 60 VA / W 250 V 1 A 4.5 ms 7 ms 100 Hz |
