MBK

Magnet switch, block form with connection cable

The magnet switch equipped with a reed contact is switched by the approach of a permanent magnet. The contact surrounded by inert gas reliably detects the position of moving parts. In bistable version the contact is stay-put and rests in the switching position until the magnet passes by in the opposite direction. The block form type MBK with plug connection can be mounted without space, side by side without any mutual interference.

Magnet switch MBK

Magnet MR10 / MR10R

Dimensions MBK

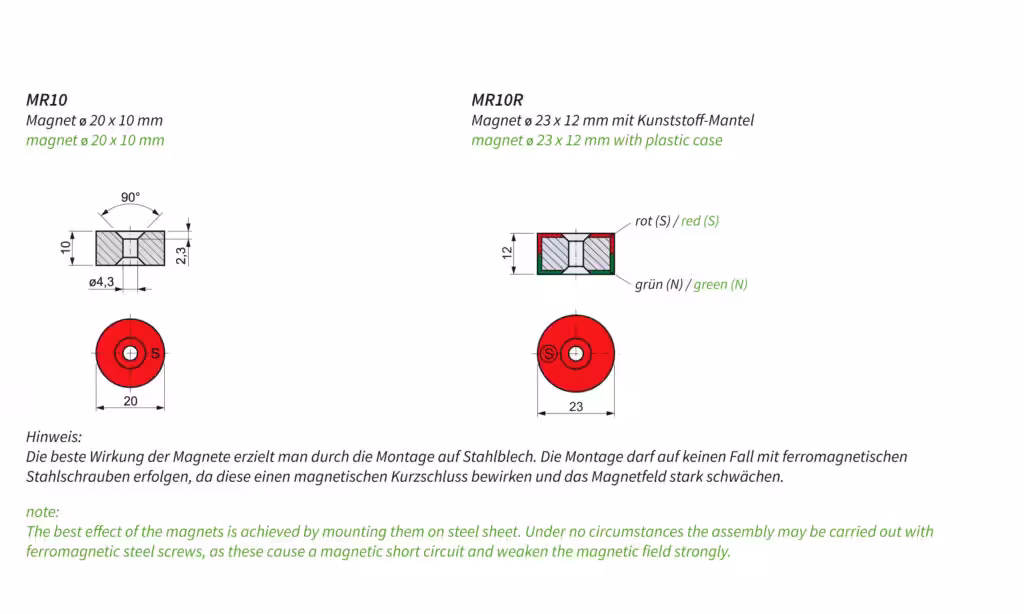

Dimensions MR10R

Features

  • M4 – threaded pins for fixation
  • 2 m connection cable
  • high contact safety because of reed contact in inert gas atmosphere
  • quiet operation
  • version with LED available
  • bistable version available (stay-put)
  • attachable because of magnetic shielding

Order information codes

Technical data

contact material iron / nickel with rhodium
connection 2 m connection cable, 2 x 0.75 mm² resp. 3 x 0.5 mm²
level of protection IP40
ambient air temperature -25 °C up to +80 °C
weight 60 g
MBK:
switching performance max.
switching voltage max. (AC/DC)
switching current max.
switch-on time
drop-out time
switching performance max.
-BI
120 VA / W
230 V
2.5 A
3.5 ms
0.2 ms
100 Hz
-BI-LED
80 VA / W
230 V
0.8 A
3.5 ms
0.2 ms
100 Hz
