HZTK
Door switch and hook lock positive contact
The innovative HZTK is a safety switch with forced actuation which can be used as door switch and switch for locking mechanism. It allows a large sliding area between contact bridge and switch. In addition to the standard design (HZTK-1), a higher version is available (HZTK-2), at which the connection cables can be laid below the switch.
Door switch HZTK-1

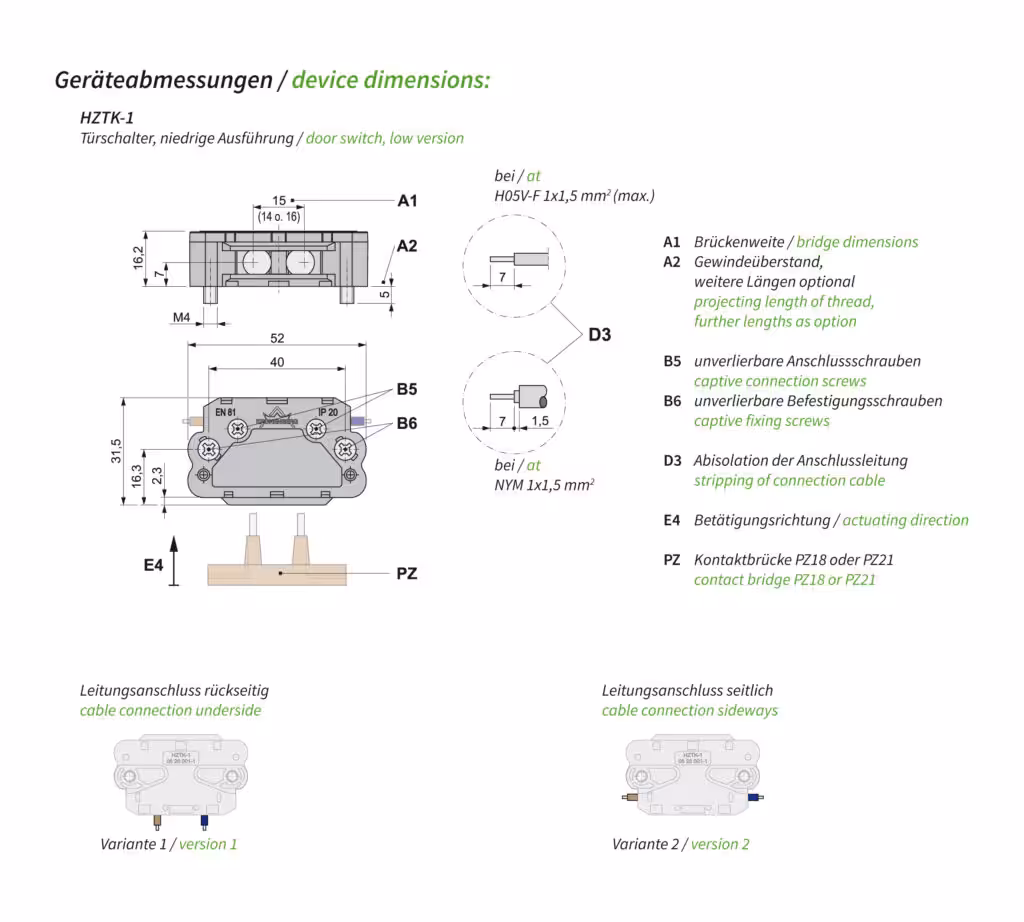

Dimensions HZTK-1
Contact travel HZTK-1
Door switch HZTK-2

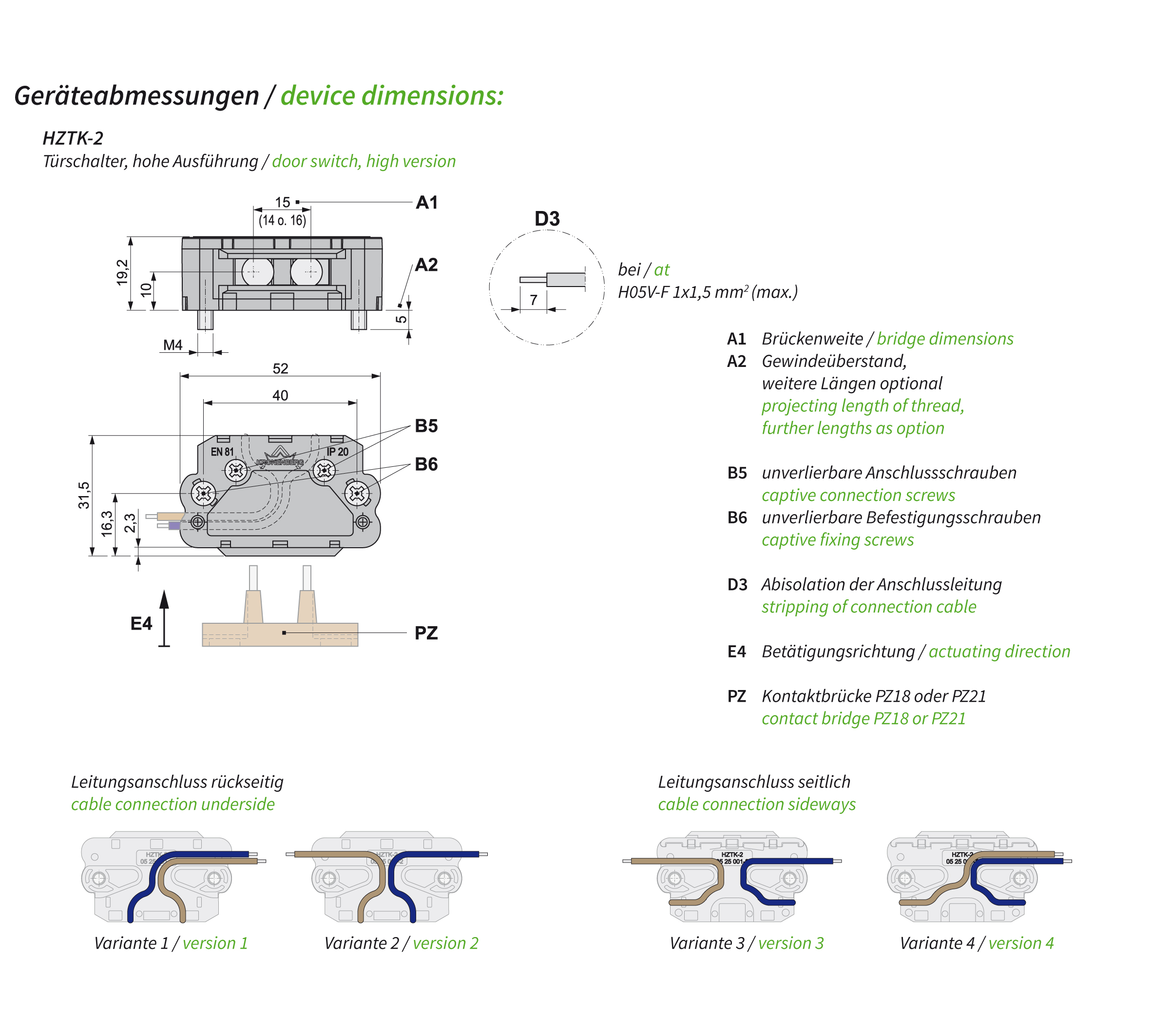

Dimensions HZTK-2

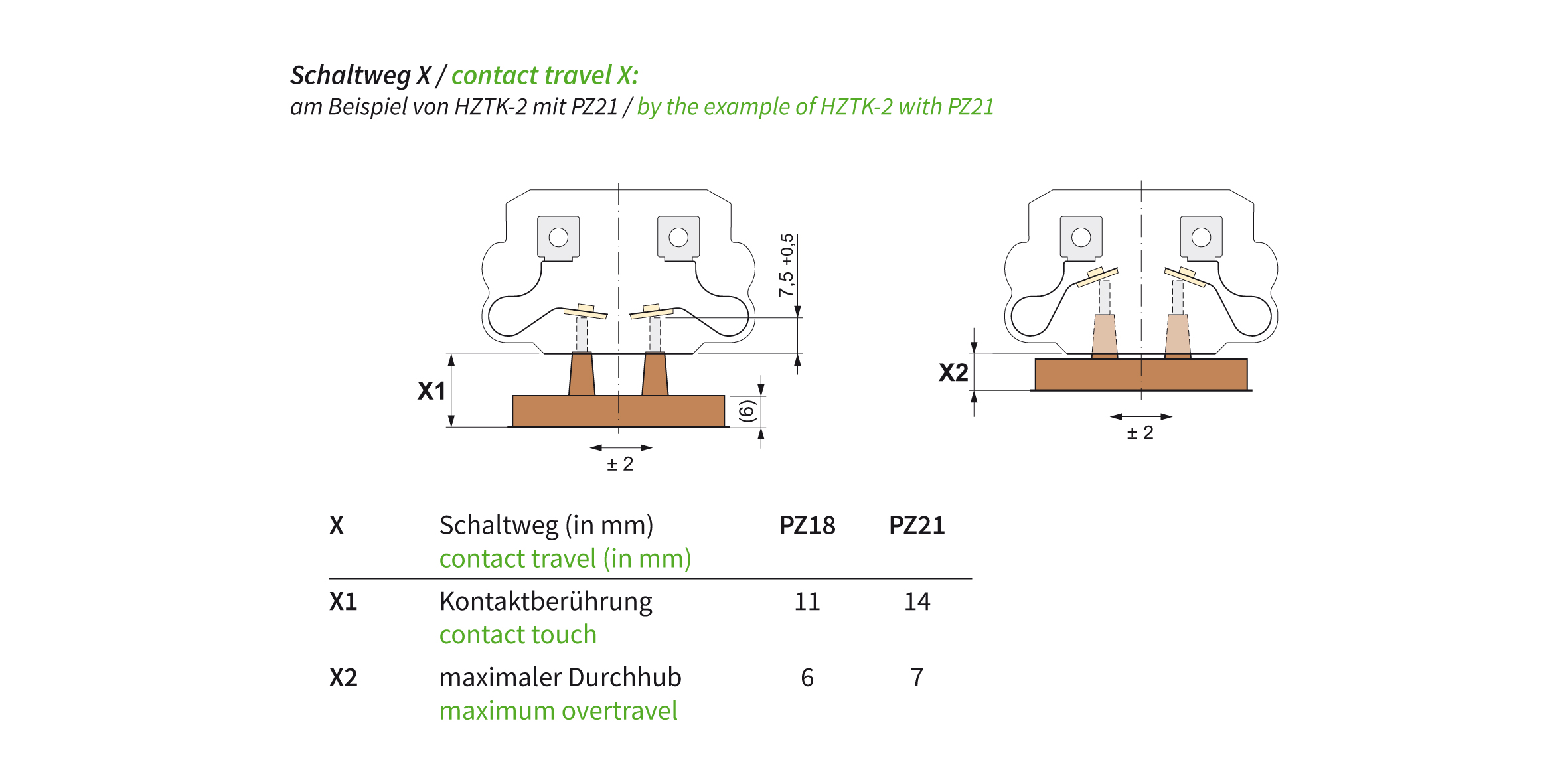

Contact travel HZTK-2
Contact bridges PZ18 and PZ21
Features
- safety switch with positive contact
- use for monitoring the closure position of lift doors resp. as switch for locking mechanism
for monitoring the blocking of the hook lock on automatic doors - enclosure made of thermoplastic, self-extinguishing
- high contact safety by self-cleaning
- quiet functioning
- connection possibilities: sideways and/or underside
- connecting terminals provided with pressure plate, thus permanent and safe contacting
- visible contacts through transparent cover
- integrated fixing screws, captive
Order information codes
Technical data
| norms | EN 81-20, EN 81-50, EN 60947-5-1 |
| switching capacity | Ui = 500 V Ith = 4 A Uimp = 4 kV AC-15: Ue = 230 V Ie = 2 A DC-13: Ue = 200 V Ie = 2 A |
| short-circuit capacity | T10 A F 16 A |
| contact material | fine silver |
| actuation force | initial force 0.6 N ultimate force 1.2 N |
| connection | by screw terminal max. 2.5 mm² |
| level of protection | IP20 |
| ambient air temperature | -30 °C up to +80 °C |
| installation position | any |
| weight | HZTK-1 = 22 g HZTK-2 = 23 g |
