EMT15K

with smaller installation depth

At the electromagnetic retiring cam EMT15K the magnet is arranged above the actual cam. In this way, a smaller installation depth is realised. This version is ideally suited for confined spaces. The force is slightly lower compared to the EMT17.

Retiring cam EMT15K

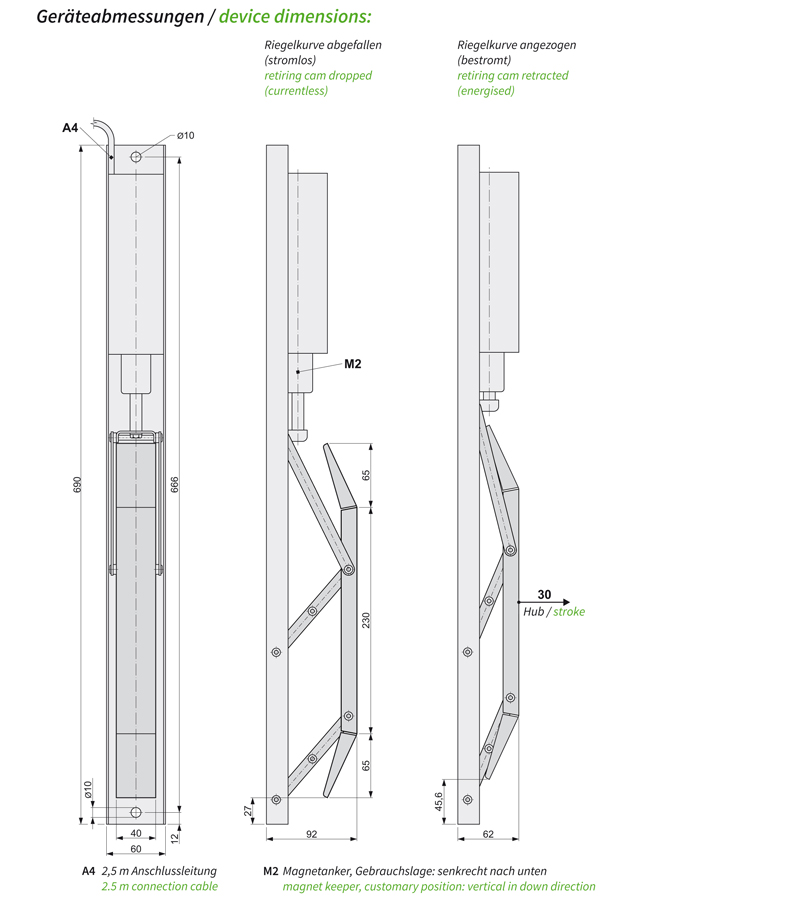

Dimensions EMT15K

Retiring cam EMT15K

Features

  • low construction height
  • all steel parts galvanized
  • quiet due to high absorption at switch on and switch off
  • automatic switching to reduced holding current
  • robust and precise

Order information codes

Technical data

duty cycle 100%
stroke 30 mm
actuation force 40 N
pull-in / holding current 0.85 A / 0.20 A
connection 2.5 m connection cable 3 x 1 mm² (special lengths on request)
level of protection IP20
ambient air temperature 0 °C up to +40 °C (application at temperatures < 0 °C on request)
customary position magnet keeper vertical in down direction
weight 4.8 kg
