E-14

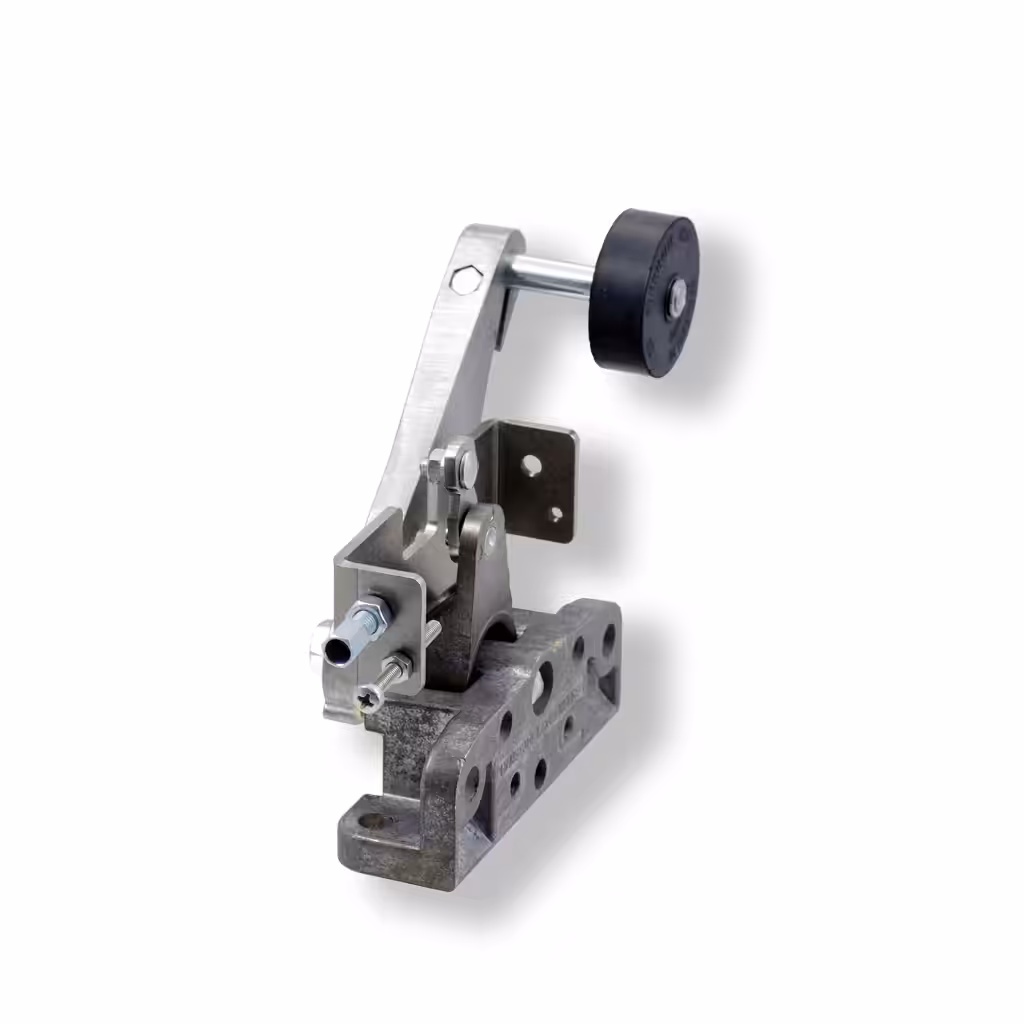

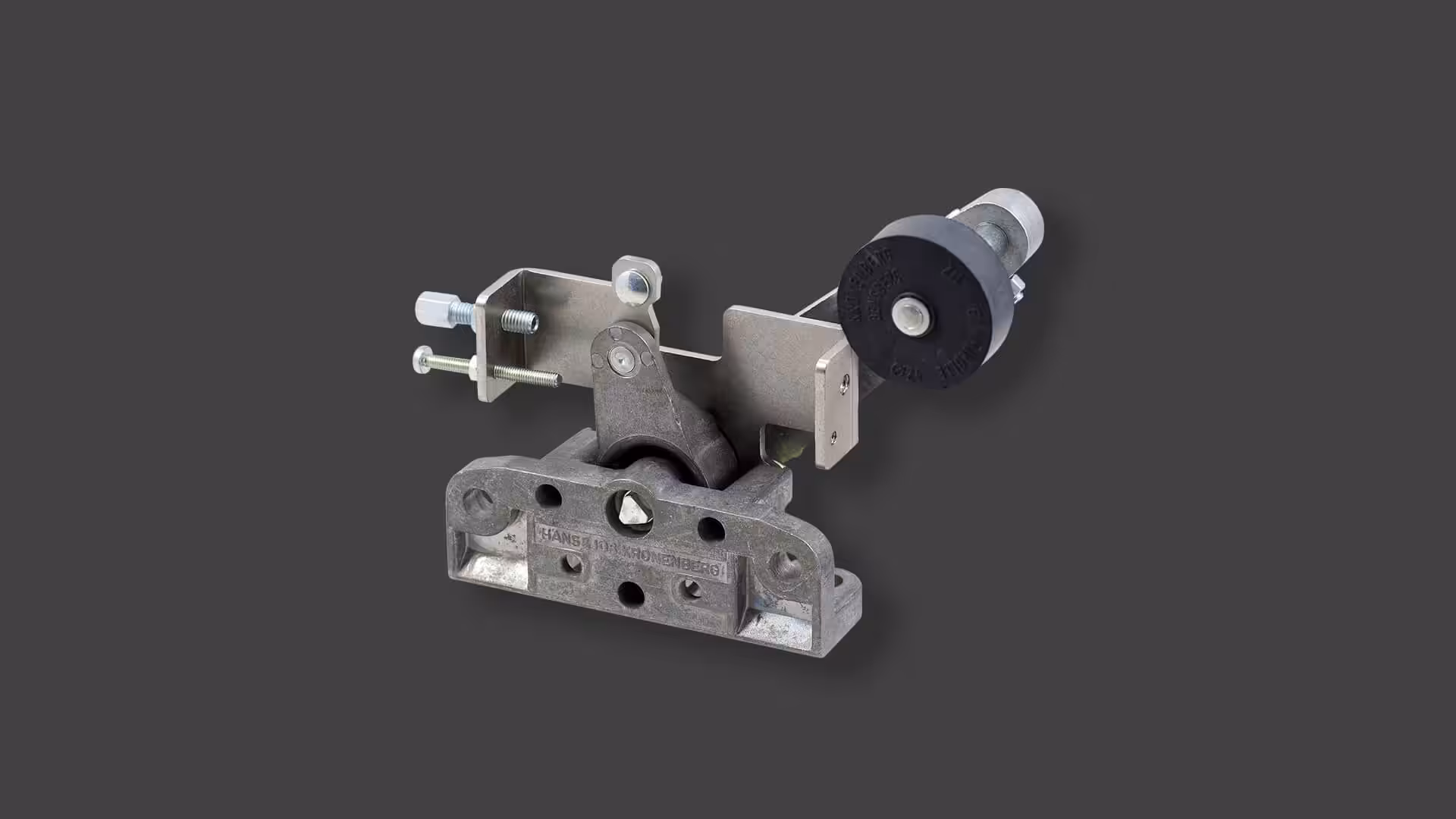

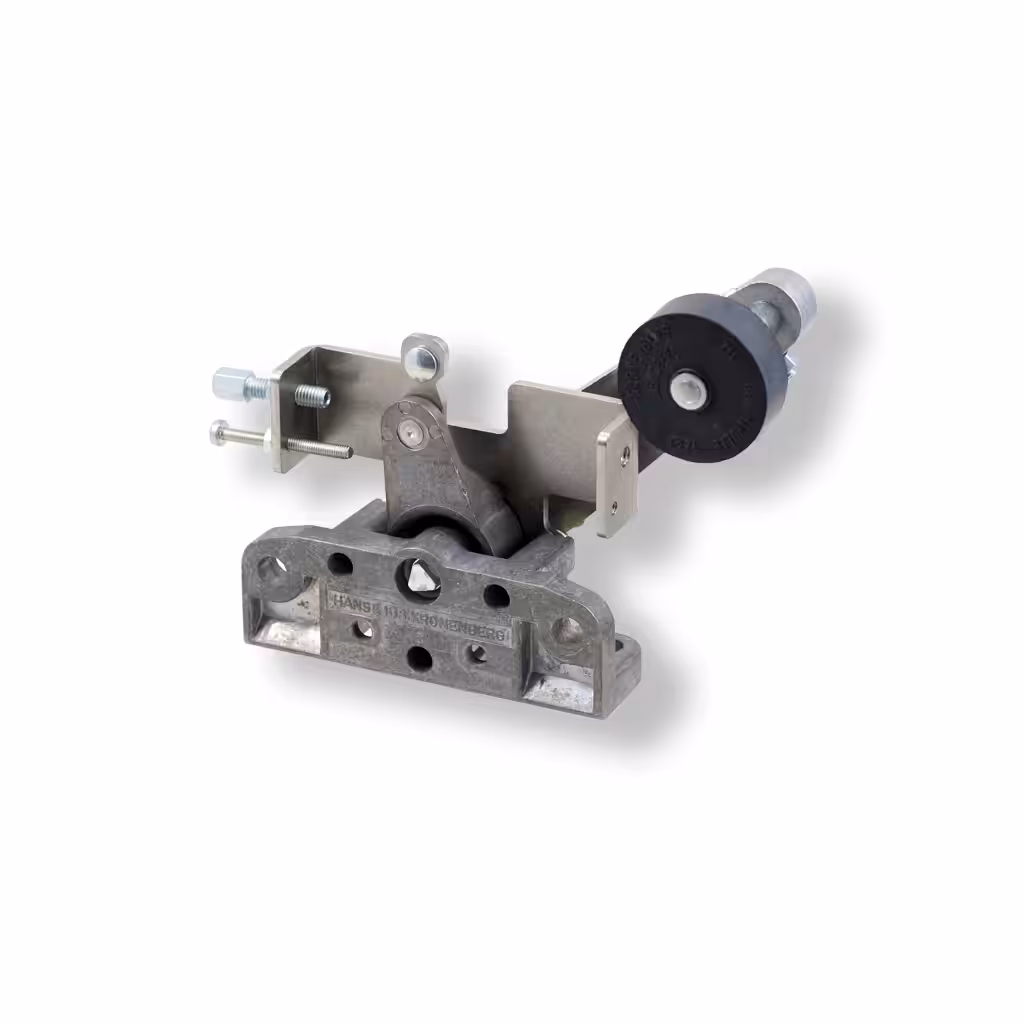

Single bearing block for emergency release by bowden cable
The single bearing block E-14 is intended for actuation by bowden cable. The rubber roller G60 and the roller lever RH are included in the scope of delivery. It is equipped with an additional emergency release triangle.
Single bearing block for emergency release
Single bearing block for emergency release

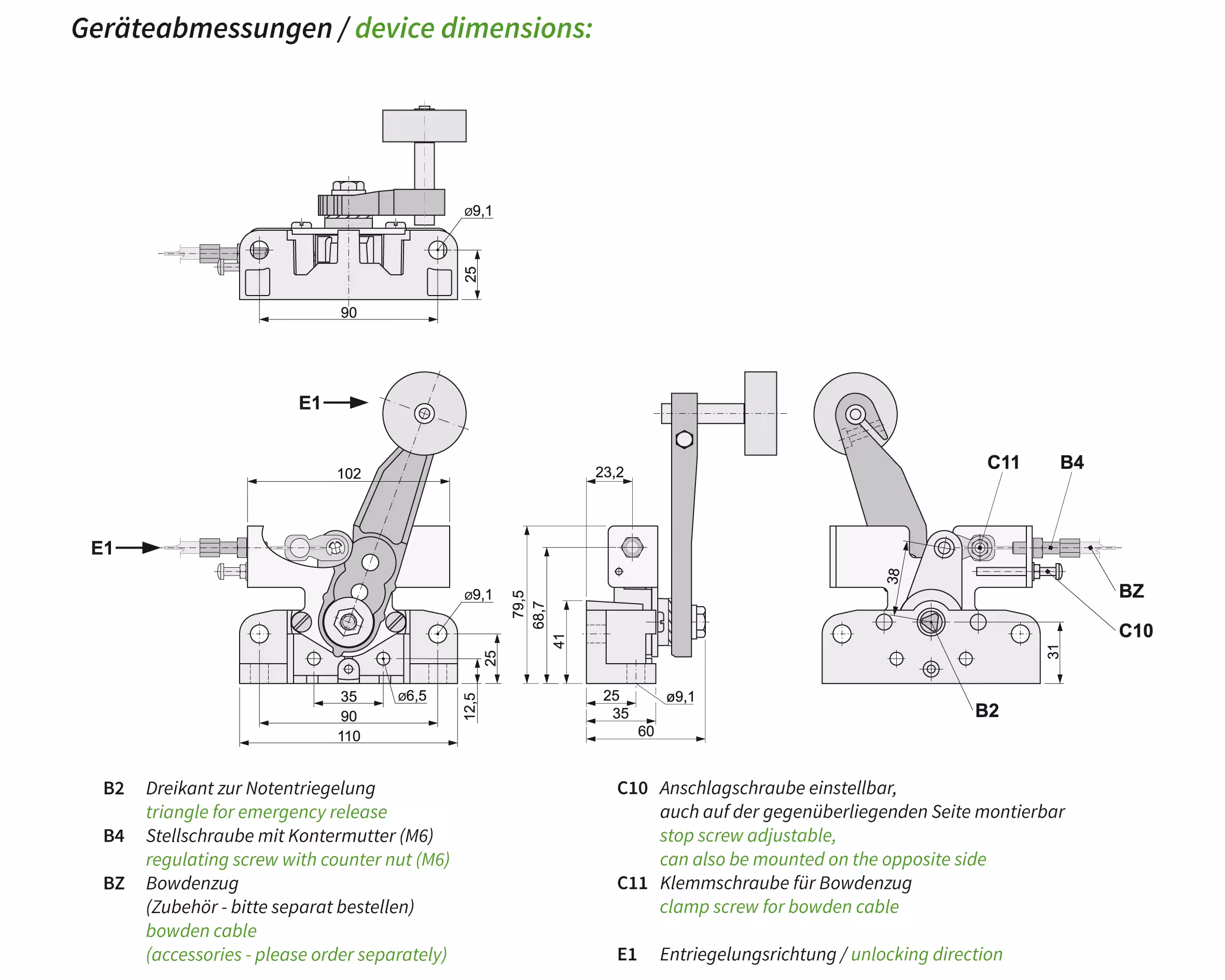

Dimensions
Features
- for the actuation of door interlocks by bowden cable
- robust, durable full metal version
- triangle for emergency release at the bearing axis, base side
- actuation direction can be changed
- stop screw and regulating screw for setting and if necessary for adjustment
- roller lever RH and rubber roller G60 are included in the scope of delivery
Order information codes
Technical data
| enclosure | aluminium diecast |
| actuation torque | maximum permissible 3.8 Nm |
| pulling force | maximum permissible 100 N |
| customary position | any |
| ambient air temperature | -30 °C up to +80 °C |
| weight | 344 g |
