DL(F)1MO-W(V)
Universal device (IP54) with motorized actuation
The motorized door interlock DL(F)1MO is also available in level of protection IP54. Due to the sealing against splashing water and dust this door interlock is ideally suitable for the use in harsh industrial environments. We offer the DL(F)1MO in level of protection IP54 for the horizontal and vertical installation position.
Door interlock DLF1MO-W-L-X15(u).1.P
Door interlock DLF1MO-WV-L-X15(u).1.P

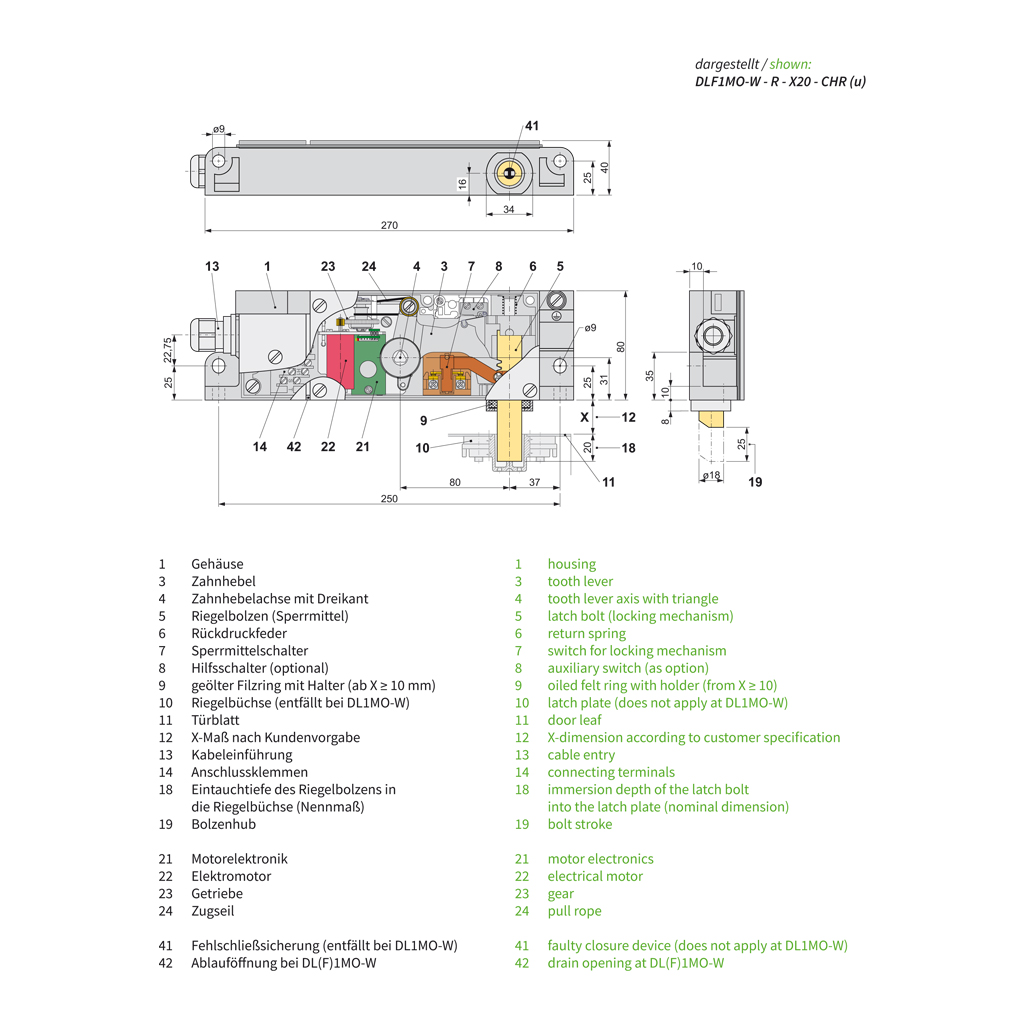

Dimensions DLF1MO-W-R-X20(u).1.P
Features
general:
- metal housing with high stability
- silent due to buffers in both directions
- maintenance-free by permanent lubrication with high quality lubricants (up to -30 °C)
- oiled felt ring at latch bolt for lubrication as well as for sealing against dirt and dust (at X-dimension ≥ 10 mm)
- constrained faulty closure at DLF1MO-W(V) for use in passenger lifts
- contacts with solid fine silver plating for a safe and reliable function, even at low voltages and currents
- as option: auxiliary switch with one contact
special features:
- integrated actuation by maintenance-free, low-noise three-phase motor and decelerated dropping of the bolt
- patent protected by Gbm DE 20 2015 105 331 and by patent EP 3 153 454 B1, validated in DE / FR / IT / ES
- water protection (IP54) at horizontal installation (-W) resp. at vertical installation position (-WV)
- metal cover with rubber seal instead of clear cover
- chromed latch bolt for better oxidation protection
- high starting power
- low pull-in current (< 1 A at 24 V)
- automatic switching over to reduced holding current (< 0.2 A), energy-saving
- safe unlocking by position monitoring even if the bolt is temporarily blocked (incorrect operation)
- terminal block with all electrical connections
- liberation from the shaft by cover side triangle or optional pull lever for manual operation
- connection for bowden cable or cable pull for unlocking available, e.g.
application 1:unlocking from the pit ladder (< 1.80 m according to EN 81-20)
application 2:offset emergency release triangle (< 2 m according to EN 81-20)
Order information codes
Technical data
| norms | EN 81-20, EN 81-50, EN 60947-5-1 |
| certificates | type approval certificate: EU-DL 808-2 (DLF1MO-W, DLF1MO-WV) und EU-DL 807-2 (DL1MO-W, DL1MO-WV) UK-DL 808-2 (DLF1MO-W, DLF1MO-WV) und UK-DL 807-2 (DL1MO-W, DL1MO-WV) |
| switching capacity: switch for locking mechanism auxiliary switch .90/01 |
Ui = 250 V Ith = 10 A Uimp = 4 kV AC-15: Ue = 230 V Ie = 2 A DC-13: Ue = 200 V Ie = 2 A AC: Ue = 250 V Ie = 6 A EN 61058 DC: Ue = 200 V Ie = 0.25 (0.1) A DC: Ue = 24 V Ie = 3.0 (2.0) A |
| short-circuit capacity | T 10 A F 16 A |
| contact material | fine silver |
| motor drive of the latch bolt: operating voltage pull-in current / time (typical) holding current |
24 V DC (-10 % / +25 %) regulated 0.8 A / < 0.5 s 0.15 A |
| connection | by screw terminal max. 2.5 mm² cable entry M25 with reducing ring and cable gland M20x1.5 |
| level of protection | IP54 |
| ambient air temperature | -10 °C up to +45 °C (special version up to -30 °C) |
| weight | 1000 g to 1200 g (according to version) |
